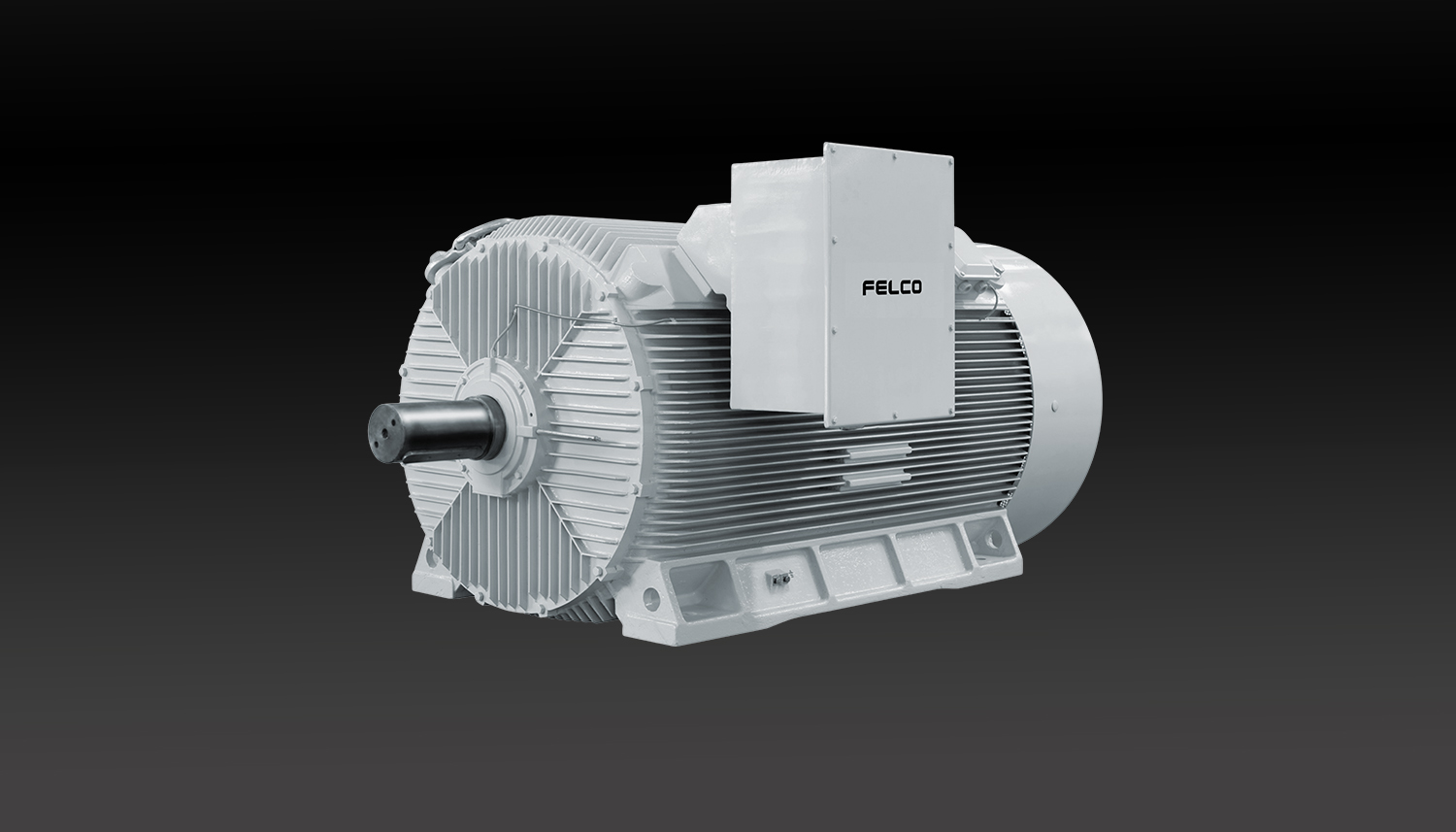

Medium & High Electric Voltage Motors
Felco medium and high voltage electric motors are built for heavy-duty industrial applications requiring high power output and long-term operational reliability. Engineered for sectors such as power generation, mining, oil & gas, marine, and heavy manufacturing, these motors are designed to perform under demanding mechanical and environmental conditions.
Frame Size
315-1000Output
185-8000 kWIP Class
IP55Insulation
FThese motors are typically three-phase, asynchronous or synchronous types, with Totally Enclosed Fan Cooled (TEFC), Air-to-Air (IC611), or Air-to-Water (IC81W) cooling systems. Custom configurations are available based on project-specific requirements.
Our Types of Motors
• Medium Voltage
Frame size: 315-1000
Rated Out Put: 132–1800KW
• High Voltage
Frame size: 315- 1000
Rated Out Put: 185 – 8000KW
Motor Features
Compliant with IEC 60034, IEC 60072, and relevant international standards
Power range: typically from 315 kW to 20 MW
Voltage range: 3.3 kV to 13.8 kV (custom options up to 15 kV)
Insulation Class F or H with Class B/F temperature rise
Protection degree: IP55 / IP56 / IP65 (based on application)
Cooling methods: IC411, IC611, IC616, IC81W, IC01
Bearings: sleeve or anti-friction bearings with monitoring systems
Optional features: vibration sensors, temperature monitoring (PT100), space heaters, anti-condensation systems, and condition monitoring solutions
Voltage Configurations
Standard: 3.3 kV / 6.6 kV / 11 kV / 13.8 kV – 50 or 60 Hz
Customized voltages and frequencies available upon request
Dive Into the Details
Our comprehensive catalogues and brochures provide in-depth technical data, performance charts, and application guides for our entire product range.
